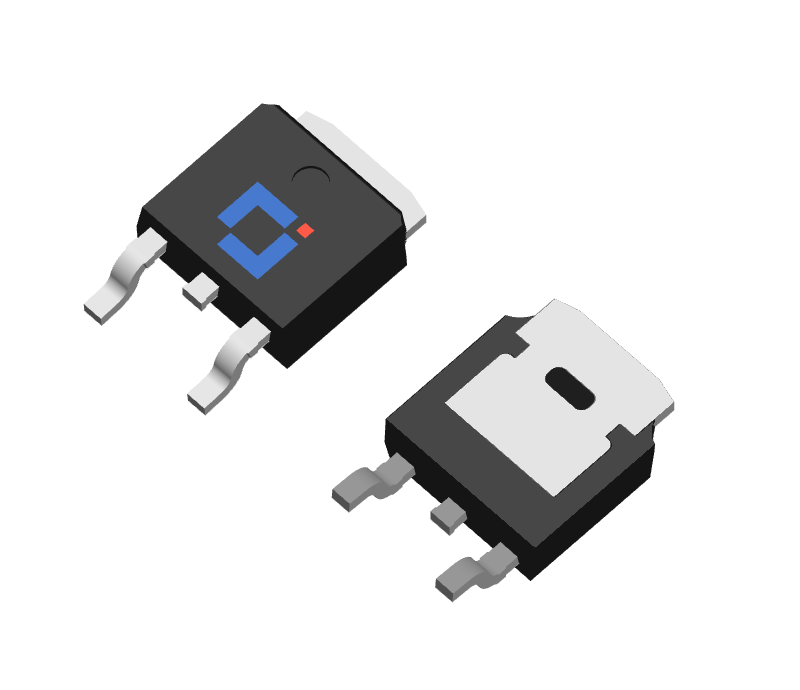

Nch 40V 80A, TO-252-2L, SGT MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJU6R0SN04AL | Active | No | 40 | ±20 | 80 | 1.5~2.5 | 3.8 | 5 | 7 | 9.8 | TO-252-2L |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| CJU6R0SN04AL | TO-252-2L | 6R0SN04AL | 2.5K/Reel;13 inch | 5K | 25K | MSL3 |
